100HC-1-A-24/1D
$23.08 Excl. Vat, Tax and Duties
4-6 weeks for additional manufactured stock
Availability: 5 in stock
Discount per quantity
| Quantity | 1 - 24 | 25 - 99 | 100 - 249 | 250+ |
|---|---|---|---|---|
| Price | $23.08 | $20.77 | $19.62 | $18.46 |

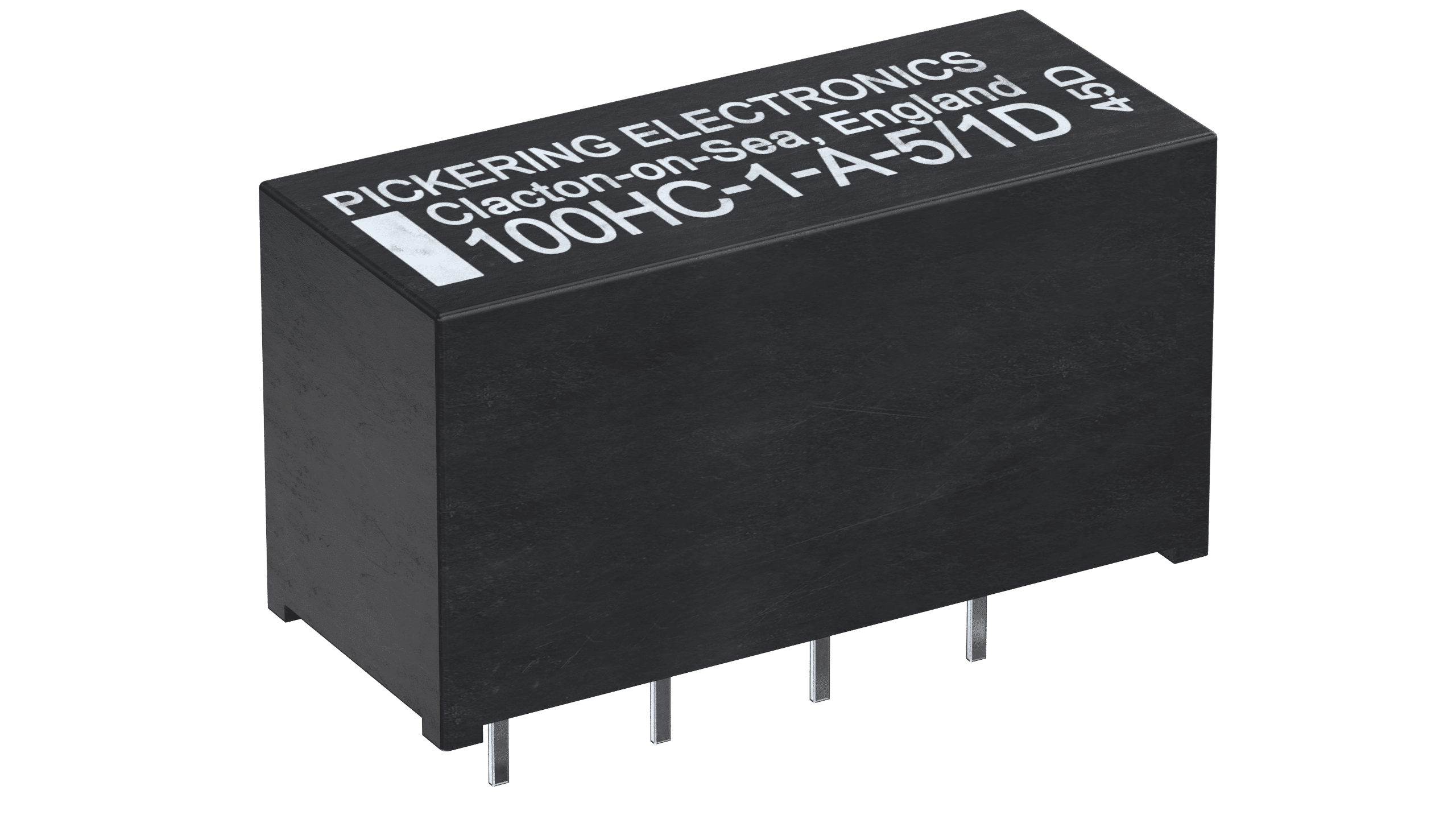

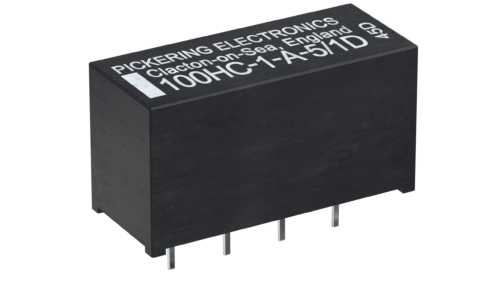

Pickering Series 100HC
- High Voltage SIL High Coil Resistance Reed Relays
- Up to 1kV
- 1 Form A
- 24 V Coil
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
| Dimensions | 55663927 × 556629 mm |
|---|---|
| PEL Contact Configuration | 1 Form A – SPST N.O. |
| PEL Switching Current (Amps) | 1 |
| PEL Switching Power (Watts) | 40 |
| PEL Switching Voltage | 200 |
| PEL Standoff Voltage | 1000 |
| PEL Coil Voltage | 24V |
| PEL Coil Resistance | 6000 Ω |
| PEL Diode | Yes |
| PEL Depth (mm) | 10.2 |
| PEL Width (mm) | 29 |
| PEL Height (mm) | 12.7 |
| PEL Series | Series 100HC |
| PEL Switch Type | 1KV Standoff |
Other Recommended Relays
Quality Assurance
Pickering reed relays are subjected to continuous inspection during the manufacturing process and after a strenuous thermal cycling routine, every reed relay is 100% tested for all operating parameters.
Pickering are certified to ISO 9001:2015 and audited by the British Standards Institution.
Free Evaluation Samples
Did you know Pickering provide free working samples to help you evaluate our high-quality reed relays without reducing your R&D budget? Request your free samples today.
