104-1-A-5/4D
$16.91 Excl. Vat, Tax and Duties
4-6 weeks for additional manufactured stock
Availability: 202 in stock
Discount per quantity
| Quantity | 1 - 24 | 25 - 99 | 100 - 249 | 250+ |
|---|---|---|---|---|
| Price | $16.91 | $15.22 | $14.37 | $13.53 |

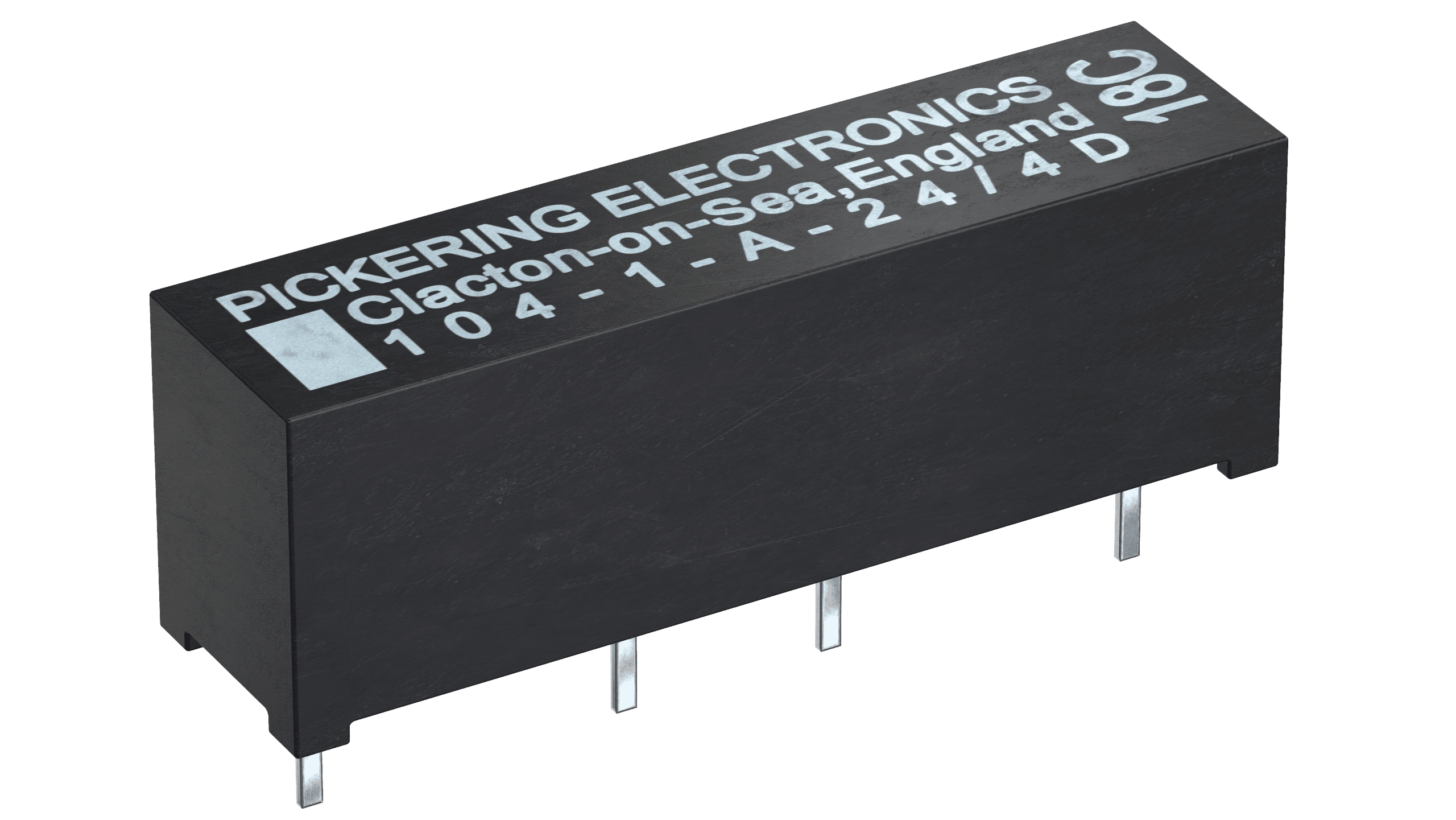

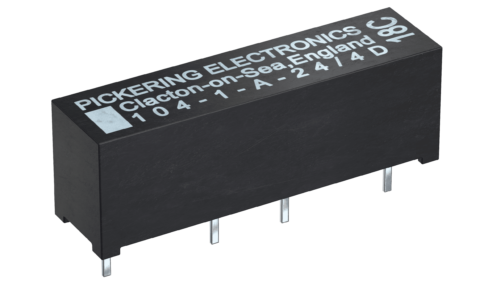

Pickering Series 104
- High Voltage SIL Reed Relays
- For up to 4kV
- 1 Form A
- 5 V Coil
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
To learn more about this series click here
Many benefits compared to industry-standard relays. Learn more here
Custom options are available. Learn more here
| Dimensions | 55663927 × 556629 mm |
|---|---|
| PEL Contact Configuration | 1 Form A – SPST N.O. |
| PEL Switching Current (Amps) | 1 |
| PEL Switching Power (Watts) | 25 |
| PEL Switching Voltage | 1000 |
| PEL Standoff Voltage | 4000 |
| PEL Coil Voltage | 5V |
| PEL Coil Resistance | 220 Ω |
| PEL Diode | Yes |
| PEL Depth (mm) | 6.22 |
| PEL Width (mm) | 24.1 |
| PEL Height (mm) | 8.1 |
| PEL Series | Series 104 |
| PEL Switch Type | 1.5KV Standoff |
Other Recommended Relays
Quality Assurance
Pickering reed relays are subjected to continuous inspection during the manufacturing process and after a strenuous thermal cycling routine, every reed relay is 100% tested for all operating parameters.
Pickering are certified to ISO 9001:2015 and audited by the British Standards Institution.
